Electrospinning is an advanced technique used for producing nanofibers from various polymer solutions or melts. This process involves the use of high-voltage electricity to stretch a polymer solution into fibers that can range in size from micrometers to nanometers. Electrospinning is widely used in industries such as textiles, medicine, filtration, and biotechnology due to the unique properties of nanofibers, including their large surface area-to-volume ratio, high porosity, and ability to mimic biological structures.
At the core of the electrospinning process lies the electrospinning power supply, which plays a pivotal role in ensuring the success and efficiency of fiber production. This article will provide a detailed overview of the electrospinning power supply, explaining its functions, key features, and how it contributes to the quality of the fibers produced.

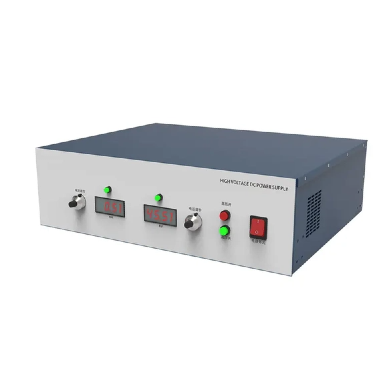

An electrospinning power supply is a critical component of the electrospinning setup that generates the high voltage required to create and maintain the electric field necessary for the electrospinning process. It provides a stable and adjustable output of voltage and current, which is crucial for controlling the stretching of the polymer jet and the formation of fibers. Electrospinning power supplies typically offer high-voltage outputs, ranging from 10 kV to 30 kV, depending on the specific application.
The power supply is connected to the spinneret (needle), which holds the polymer solution or melt, and the collector, which is typically a grounded plate or rotating drum that collects the fibers as they are spun. The high voltage from the power supply creates an electric field that pulls the polymer solution from the spinneret, causing the solution to form a jet that elongates as it travels towards the collector.
The primary role of the electrospinning power supply is to generate and maintain the necessary voltage to drive the electrospinning process. Below are some of the key functions that the power supply must fulfill:
Generating High Voltage： The power supply generates the high voltage required to create the electric field that stretches the polymer jet. The voltage typically needs to be in the range of 10–30 kV, depending on the material being used and the desired fiber properties. Higher voltages lead to thinner fibers, which is often desired for nanofiber production.
Maintaining Stable Voltage and Current ：For the electrospinning process to be consistent and repeatable, the power supply must be able to maintain a stable voltage and current throughout the process. Fluctuations in voltage can lead to inconsistent fiber formation, which can result in fibers of varying diameters, uneven thickness, or the formation of beads rather than continuous fibers.
Adjustable Settings for Process Control ：Electrospinning power supplies are often designed with adjustable voltage settings, allowing operators to fine-tune the process according to the material properties and desired fiber characteristics. The ability to control voltage is critical for optimizing the electrospinning process and achieving the desired fiber diameter, porosity, and alignment.
Providing Safe Operation ：Electrospinning involves the use of high voltages, which can pose a safety risk if not properly controlled. Modern electrospinning power supplies are equipped with safety features such as overload protection, short-circuit protection, and grounding systems to prevent electrical accidents. These features ensure safe operation during the electrospinning process.
Integration with Electrospinning Systems： Electrospinning power supplies are typically integrated with other components of the electrospinning setup, such as the syringe pump (for controlling the polymer feed rate) and the collector. Coordination between these components is essential for producing high-quality nanofibers. The power supply ensures that the polymer jet is formed at the right speed and with the appropriate amount of stretching, while the collector helps shape and collect the fibers.
When choosing an electrospinning power supply, several key features must be considered to ensure optimal performance. Below are some of the most important features to look for:
High-Voltage Output：The most defining feature of an electrospinning power supply is its ability to deliver high-voltage output. Depending on the specific application, the required voltage can range from 10 kV to over 30 kV. High voltages are necessary to create the strong electric fields that will stretch the polymer jet into nanofibers.
Stability and Precision：A high-quality electrospinning power supply must provide a stable and precise voltage output. Voltage instability can lead to inconsistent electrospinning results, causing problems such as variations in fiber diameter, formation of beads, or even the failure of the electrospinning process. Precision controls ensure that the voltage can be adjusted with accuracy, allowing for consistent and repeatable fiber production.
Adjustable Current Settings：In addition to voltage, the current supplied by the power supply is also crucial for controlling the electrospinning process. The ability to adjust the current allows the operator to control the rate at which the polymer is drawn from the spinneret. This, in turn, affects the fiber morphology. For instance, a lower current typically results in thinner fibers, while a higher current can produce thicker fibers.
Safety Features： Given the high-voltage nature of the electrospinning process, safety is a top priority. Modern electrospinning power supplies are equipped with various safety features, such as overload protection, short-circuit protection, over-voltage protection, and automatic shut-off mechanisms to prevent electrical hazards. These features protect both the operator and the equipment.
Digital Controls and Displays：Many electrospinning power supplies come with digital displays and controls, allowing for easy monitoring and adjustment of the voltage and current. These digital systems provide more precise control over the electrospinning process and allow for better tracking of parameters, improving the overall reproducibility of the process.
Multiple Output Channels：Some electrospinning power supplies offer multiple output channels, which is useful for electrospinning multiple materials at once. This feature is particularly valuable for research purposes or large-scale production processes that require simultaneous electrospinning of different fibers.
The electrospinning power supply directly influences the quality and characteristics of the nanofibers produced. Below are some of the ways in which the power supply impacts the fiber production process:
Fiber Diameter Control: The voltage applied by the power supply determines how much the polymer jet is stretched during the electrospinning process. Higher voltages lead to greater elongation of the polymer jet, resulting in finer fibers. Conversely, lower voltages lead to thicker fibers. The ability to adjust the voltage allows operators to control the fiber diameter to meet specific requirements.
Fiber Morphology: The morphology of the fibers, such as their smoothness, uniformity, and the presence of beads, is highly influenced by the power supply settings. An unstable voltage or current can cause the polymer jet to break up or form beads, leading to poor-quality fibers. A stable and adjustable power supply ensures smooth, continuous fiber production.
Fiber Alignment: In some electrospinning processes, especially those used in research or advanced applications, the alignment of fibers is crucial. The power supply can influence the alignment of the fibers based on the applied voltage and the collector's design. Uniform voltage distribution across the spinneret contributes to more consistent fiber alignment.
The electrospinning power supply is an essential component that significantly influences the success and efficiency of the electrospinning process. By providing the necessary high voltage, stability, and control over the current, the power supply ensures that fibers are produced with the desired characteristics, such as the correct diameter, morphology, and alignment. Additionally, with advancements in technology, modern electrospinning power supplies now feature digital controls, safety features, and multiple output channels, further improving the precision and reliability of fiber production.
For those looking to explore electrospinning technology and produce high-quality nanofibers, selecting the right electrospinning power supply is crucial. A well-chosen power supply can help ensure consistent results and enhance the overall efficiency of the electrospinning process, enabling the production of fibers that meet the demands of various industries, from healthcare to textiles and beyond.
